Kanthal heater

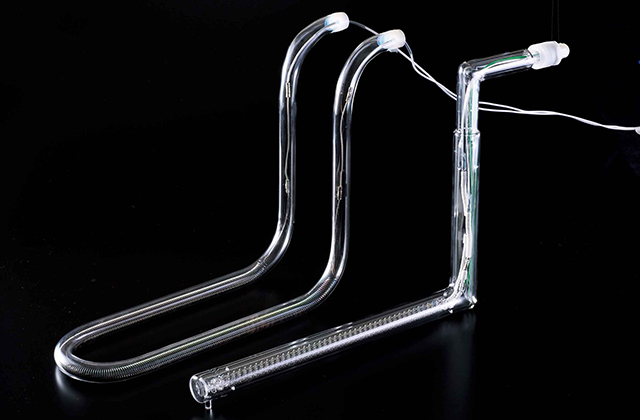

Open-type heaters with a kanthal wire (heating element) inside a quartz tube are used to heat and retain heat in semiconductor-related pure water and various chemical solutions.

Features

・Open-type heaters with a kanthal wire (heating element) inside a quartz tube.
・Used to heat and retain heat in semiconductor-related pure water and various chemical solutions.

Specifications

Various lamp wattages and dimensions are available upon customer request. We also have a wide range of products other than the specifications listed below. Please feel free to ask.

Capacity Dimension Tip processing
Voltage
Wattag
Color

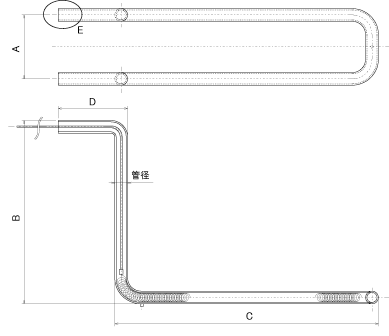

 Tube diameter A dimension B dimension C dimension
D dimension
E part
Lead wire length
200
1,200
600
20
135
350
290
0
Silicon wire / Ceramic wire
Upon request
200
1,500
600
24
0
295
400
104
Silicon wire / Ceramic wire
Upon request
200
2,000
600
20
100～235
300～350
350～370
90～100
Silicon wire / Ceramic wire
Upon request
200
2,500
600
20
100
310
350
100
Silicon wire / Ceramic wire
Upon request
200
3,000
600
20
100～185
310～340
200～350
60～80
Silicon wire / Ceramic wire
Upon request
200
4,000
600
16
110
315
390
100
Silicon wire / Ceramic wire
Upon request
220
4,150
600
22
370
217
387
100
Silicon wire / Ceramic wire
Upon request
200
5,000
800
20
100
310
350
80
Silicon wire / Ceramic wire
Upon request
